Spiral wound gaskets built for high-pressure, high-temperature sealing duty

Semi-metallic spiral wound gaskets in Type A, B, C and D construction — wound in our own plant from SS304 / 316 / 316L strip and graphite or PTFE filler. Supplied to refineries, petrochemical plants, power stations, gas transmission and pipeline projects.

Send us your flange list See specifications
ISO 9001 quality system CE certified Pressure vessel type test certificate 18,000 m² group manufacturing space 20+ years group sealing experience

Spiral wound gaskets — four constructions

Choose the construction that matches your flange face. Type A for tongue-and-groove or male-and-female faces; Type B, C and D add inner and/or outer guide rings to control compression and prevent blow-out.

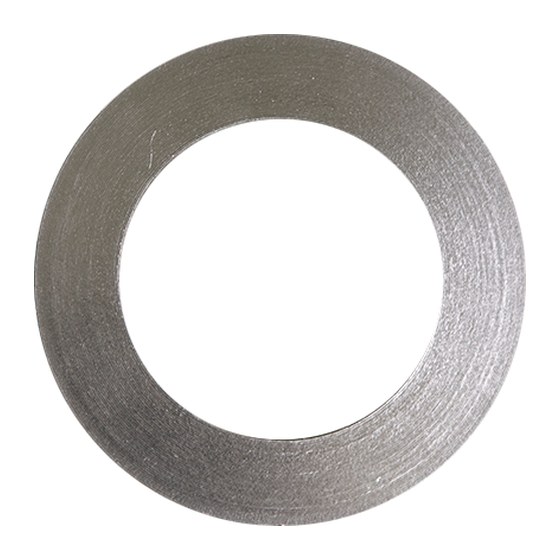

Type A basic spiral wound gasket — winding only, no guide rings
Type A

Basic type

Winding only. For tongue-and-groove and male-and-female flange faces where the gasket is fully confined.

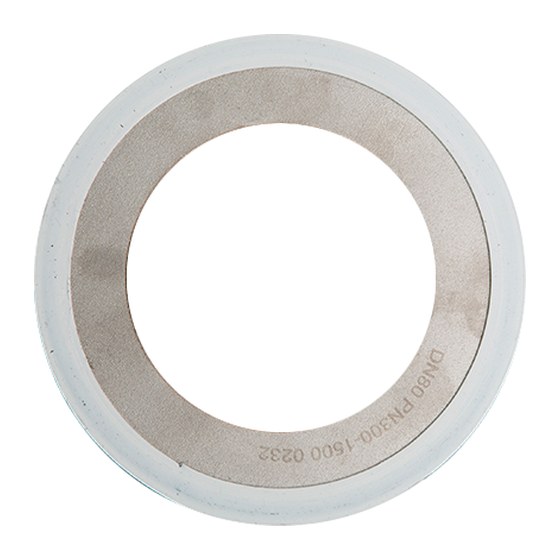

Type B spiral wound gasket with inner guide ring
Type B

With inner ring

Inner guide ring limits inward buckling, reduces turbulence and protects the winding from erosion.

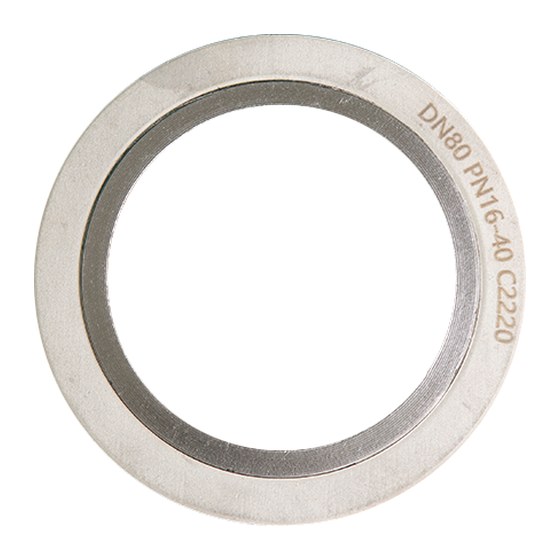

Type C spiral wound gasket with outer guide ring
Type C

With outer ring

Outer guide ring centres the gasket on the bolt circle and acts as a compression stop. For raised-face flanges.

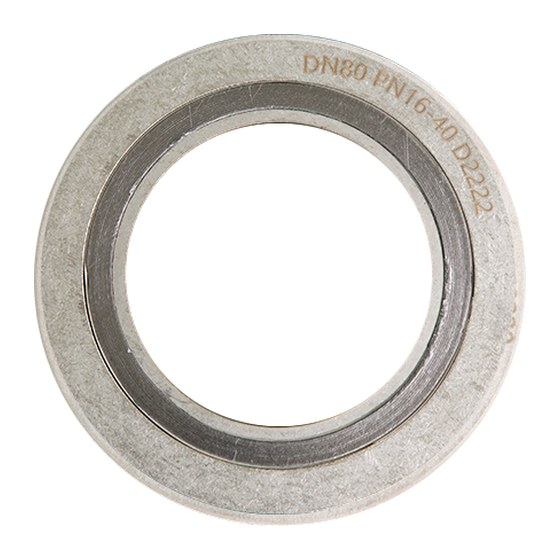

Type D spiral wound gasket with inner and outer guide rings
Type D

With inner & outer ring

Both guide rings. The most widely specified construction for raised-face flanges in critical service.

Also manufactured

Same plant, same quality system — useful when a project needs more than one gasket type from a single vendor.

PTFE gaskets — virgin & filled PTFE envelope gaskets Expanded PTFE gaskets O-rings — FKM / FFKM / NBR / VMQ FFKM O-rings for high-temperature & aggressive media Graphite sheet gaskets Serrated metal gaskets

Specifications

Typical build options. Tell us the flange size, rating, face type and the media/temperature — we will confirm the exact construction and quote.

ConstructionsType A (basic) · Type B (inner ring) · Type C (outer ring) · Type D (inner + outer ring)
Winding materialSS304 SS316 SS316L SS321 carbon steel
FillerFlexible graphite · PTFE · Ceramic · Mica · Non-asbestos
Guide ringsCarbon steel (zinc plated) · SS304 · SS316
Standard thickness3.2 mm · 4.5 mm (other thicknesses to order)
Flange standardsASME B16.5 / B16.20 · EN 1514-2 · DIN 2690 · JIS B2404 · HG/T20610-2009
Temperature rangeGraphite filler: −200 °C to +650 °C · PTFE filler: −200 °C to +260 °C
PressureTo suit flange rating — up to Class 2500 / PN420 depending on construction and size
Size rangeStandard pipe sizes ex-stock; non-standard and large diameters made to order
MarkingSize, rating, materials and tag number marked on the outer ring or on request

Spiral wound gaskets are semi-metallic: a V-shaped metal strip is wound alternately with a soft filler, then finished with an inner and/or outer guide ring. The construction gives recovery under thermal cycling while resisting blow-out at high pressure — the reason it is the default gasket for hydrocarbon and steam service.

Manufacturing capability

We are a manufacturer, not a trading company. Winding, ring fabrication, marking and inspection are all done in-house.

FZ Seals is the export brand of Jiangsu Fusijia Sealing Technology Co., Ltd. (Xuzhou, Jiangsu), part of the Fuzhao Group. Spiral winding lines, ring fabrication, the mould shop and the test laboratory are all on one site — so drawings, samples and production stay with the same team.

18,000 m²
Group manufacturing floor space
20 + yrs
Group engineering experience
0
Minimum order on standard sizes
100 %
Dimensional & material inspection before dispatch
Spiral winding of a gasket on a winding machine
Spiral winding — V-profile steel strip interleaved with the filler, with winding speed and tension controlled for an even build-up.

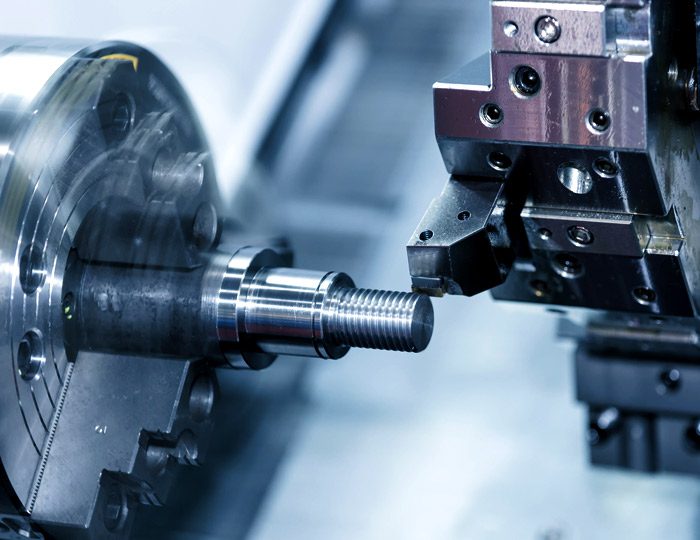

Machining of inner and outer guide rings
Ring fabrication — inner and outer guide rings turned and grooved to suit the flange bore.

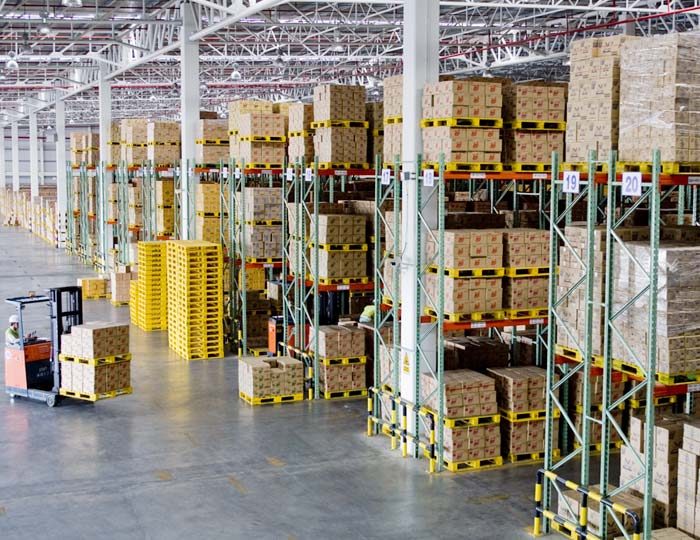

Finished gasket stock packed in timber cases
Finished stock — common pipe sizes held on the shelf for short lead times, with export packing in timber cases.

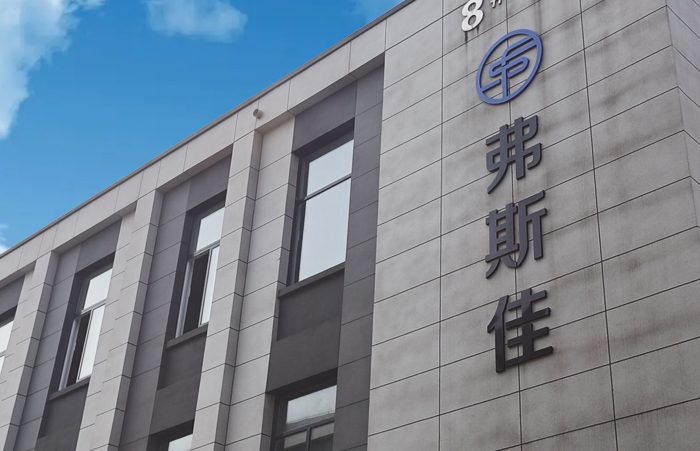

Jiangsu Fusijia Sealing Technology Co., Ltd. plant, Xuzhou
Our plant — Jiawang District, Xuzhou, Jiangsu. Sales and technical enquiries are handled by Anna Wei.

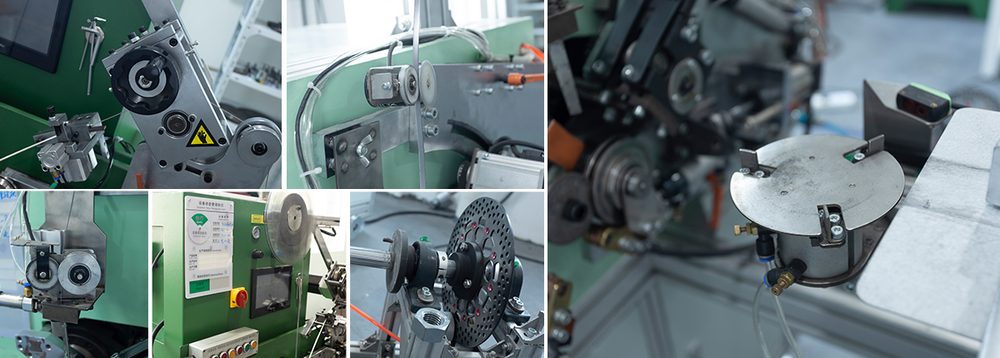

Shop floor equipment: winding machines, presses, lathes and inspection
Shop floor — winding machines, hydraulic and vulcanising presses, lathes and inspection equipment. Ring fabrication, moulding and testing are on the same site, so they are not subcontracted out.

Equipment & processes

  • Dedicated spiral winding machines — winding speed, tension and pressure controlled for even build-up
  • CNC grooving and ring fabrication for inner and outer guide rings
  • Hydraulic presses, vulcanising presses and moulding equipment for rubber and PTFE items
  • In-house mould shop and test laboratory
  • Cutting, punching, injection, blasting and extrusion processes for related sealing products

Supply & delivery

  • Warehouse stock on common pipe sizes — short lead time on repeat items
  • Non-standard and oversized gaskets produced to drawing
  • Export packing: timber cases with impact padding, product insurance included
  • Material and dimensional records supplied with each shipment
  • FOB / CIF terms; documents prepared for customs clearance

Quality & certification

Certificates and material records are available for review before you place a first order.

ISO 9001 — quality management system
CE certification
Pressure vessel type test certificate
RoHS compliance testing
Material certificates on request
  • Raw materials sourced from established suppliers — Daikin, Dow Corning and equivalent A-grade compounds
  • Mechanical fatigue testing on sealing materials; dimensional, material and process checks on finished gaskets
  • Each production batch traceable to its material heat and winding record
  • Third-party inspection (SGS / BV / TÜV) arranged on request

Industries served

Spiral wound gaskets are specified wherever flanged joints must hold under thermal cycling and pressure — our gaskets are in service across:

Oil & gas production Refineries Petrochemical & chemical plants Coal chemical Natural gas transmission & metering stations Power generation Metallurgy & steel Cement Shipbuilding & marine Vacuum furnaces Pumps, valves & pressure vessels Piping & storage tanks

Send us your flange list

The fastest way to a firm price: a spreadsheet or drawing with flange size, pressure rating, face type, quantity and the media/temperature. We will come back with a quote and, if the duty is critical, a recommended construction.

Samples can be supplied for your QA department to inspect before a first order.
